PKA-2006000 Omnidirectional Wideband Antenna Datasheet
Applications
Specifications

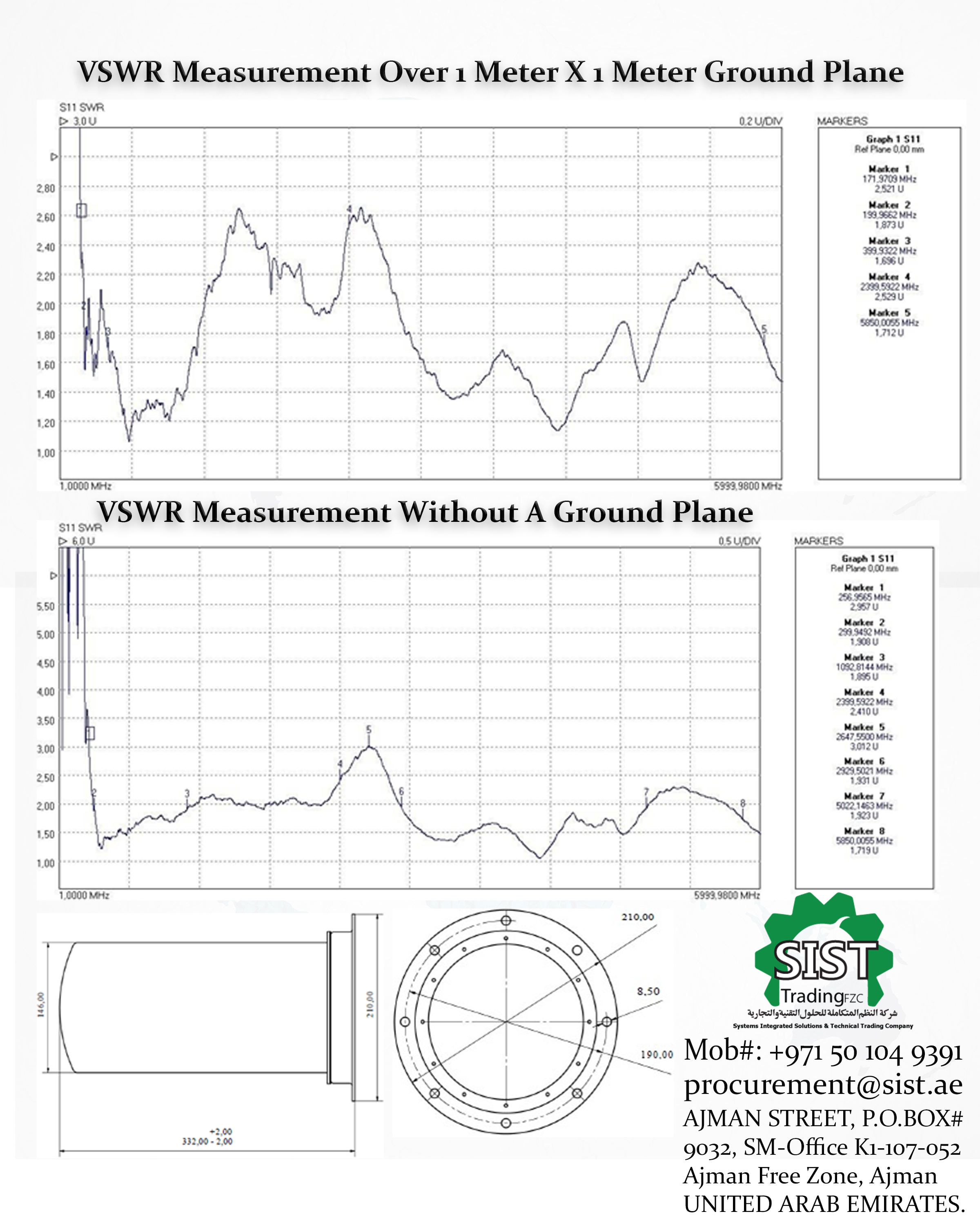

| Frequency Band and VSWR (Dependent on Ground Plane Dimensions) |
Over 1X1 m2Ground Plane: 175-6000 MHz ≤ 2.7:1 200-400 MHz ≤ 2.1:1 Without a Ground Plane 260-6000 MHz ≤ 3.0:1 |
|---|---|
| Nominal Impedance |
50 ohm |
| Power Rating | 200 Watt Continuous (Tested) |
| Antenna Gain | 0-5 dBi depending on the frequency |
| Connector | N-Female |
| Antenna Radiation Pattern | Omni-directional |
| Polarization | Vertical (Linear) |
| Radome | Plastic Radome |
| Dimensions | 40 cm (Height) X 21 cm (Diameter) |
| Colour | Black |
| Mounting | See Technical Drawing |
| Vibration |
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII |
