PKA-05520-1 Jamming Vehicle Antenna
Applications
Specifications

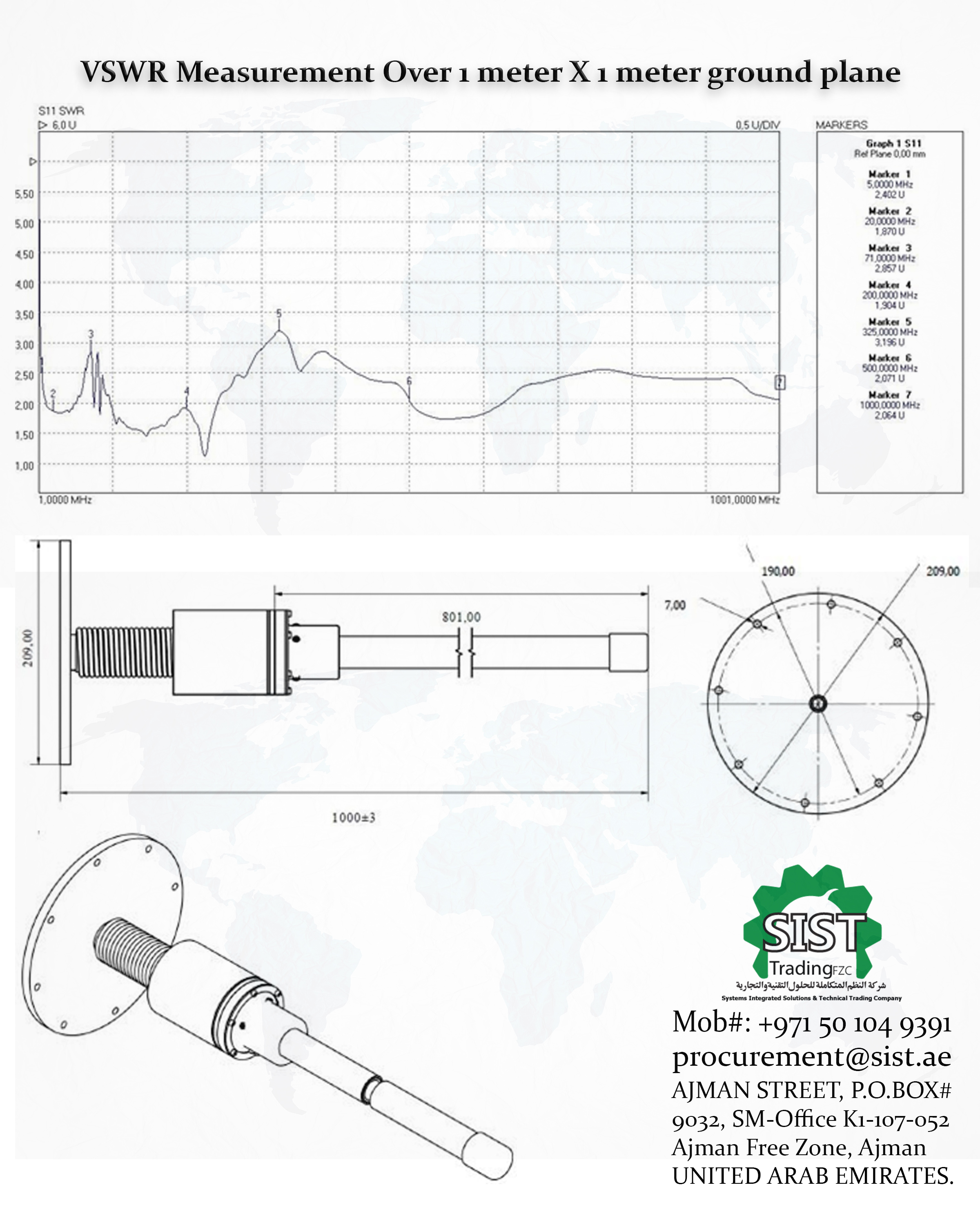

| Frequency Band and VSWR |
Over 1X1 m2 Ground Plane: 5-520 MHz ≤ 3.5:1 |
|---|---|
| Nominal Impedance |
50 ohm |
| Power Rating | 100 Watt Continuous (Tested) |
| Connector | N-Female |
| Antenna Radiation Pattern | Omni-directional |
| Polarization | Vertical (Linear) |
| Radome | Fiber Radome |
| Height | 1 meter |
| Colour | Black |
| Mounting | See Technical Drawing |
| Vibration |
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII |
